E831-8 XYZ-R
Inserter

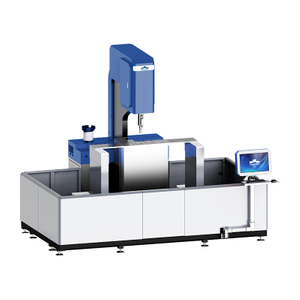

Inserter 8 Station Full Servo Riveting Center
The product CAD is imported, and the corresponding feeding tools and workpiece fixing carriers are installed according to the programmed riveting trajectory. Manual or robot loading and unloading, visual traction of the riveting position, and fully automatic riveting.
Main Feature
8 sets automatic tooling can be automatically switched
8 station can automatically change the lower die
Max. avoidance height 35mm
Production cycle-time 4-5s
Easy setup and programming in less than 15 minutes per new setup
Fastener/Fastener workpiece hole dimension wrong system
Alignment of the workpiece on the Au-to-Load table
Specification
| Model | E831-8 XYZ-R |
| Force Range | Adjustable 0.5kN--80kN |
| Throat Depth | 1200mm |
| Repreatability | ±0.01 |
| Fastener Range | M3-M8 Carbon Steel |
| Max. Rivet Length | 25mm |
| Speed | 5s/piece |
| Workpiece Range | 1200*800mm |
| MAS & Auto feed tool | 8 set |
| Max. Workpiece Weight | 60kg |
| Bending Max. Avoidance Height | 60mm |
| Workpiece Surface Max Height Difference | 30mm |
| Power | 13kw |
| Voltage | 380V/3P/50Hz |
| Size | 4100*3050*2500mm |
| Weight | 4100kg |
