In the realm of modern manufacturing, precision and efficiency are paramount. One of the most advanced tools in this domain is the 5-axis CNC machine. These machines are capable of producing highly complex parts with unparalleled precision, making them indispensable in industries ranging from automotive and aerospace to medical and industrial equipment. But how much does a 5-axis CNC machine cost, and what factors influence this price? In this comprehensive guide, we will explore the costs associated with 5-axis CNC machines, the benefits they offer, and why they are a worthwhile investment for manufacturers.

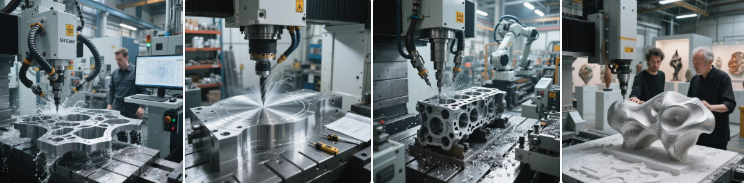

5-axis CNC machines are advanced manufacturing tools that can move in five different axes simultaneously. This capability allows them to produce complex parts with high precision and efficiency. Unlike traditional 3-axis machines, which move along the X, Y, and Z axes, 5-axis machines add two additional rotational axes (A and B), enabling them to perform multi-sided machining in a single setup. This reduces the need for multiple setups and secondary operations, saving time and increasing productivity.
Multi-Axis Movement: The ability to move in five axes simultaneously allows for complex geometries and intricate designs.
High Precision: These machines offer high accuracy, typically within ±0.001 inches (0.0254 mm), ensuring that even the most intricate parts are produced with precision.
Efficiency: By performing multiple operations in a single setup, 5-axis machines reduce production time and improve overall efficiency.
Advanced Tooling: They support a wide range of cutting tools and can handle various materials, from metals to composites.

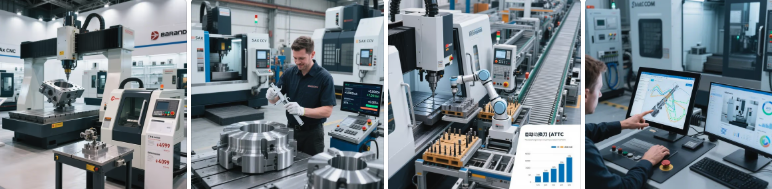

The cost of a 5-axis CNC machine can vary significantly based on several factors. Understanding these factors can help manufacturers make informed decisions when purchasing such a machine.
The type and brand of the 5-axis CNC machine are significant cost factors. There are two main types of 5-axis machines:
Gantry-Type Machines: These machines have a large gantry structure that supports the cutting tool. They are ideal for large parts and heavy-duty applications.
Table-Type Machines: These machines have a rotating table that holds the workpiece, allowing for multi-axis machining. They are more compact and suitable for smaller parts.
Higher precision and accuracy come at a premium. Machines that offer tighter tolerances and more precise movements will generally cost more. For example, a machine with an accuracy of ±0.0005 inches (0.0127 mm) will be more expensive than one with an accuracy of ±0.001 inches (0.0254 mm).
Automation is a key driver of efficiency in modern CNC machining. Features such as Automatic Tool Changers (ATCs), pallet changers, and robotic loading systems can significantly increase the initial investment in a 5-axis CNC machine. However, they also offer immense value:
Reduced Downtime: Automated tool and workpiece handling systems minimize manual intervention, leading to faster cycle times and uninterrupted operation.
Increased Throughput: Automation enables continuous production, including lights-out machining, where machines operate autonomously overnight or during weekends.
Consistency and Accuracy: Automated systems reduce human error and maintain consistent part quality across long production runs.
Though these systems add cost upfront, the return on investment (ROI) can be significant, especially for high-volume or complex part manufacturing.
The brain of a 5-axis CNC machine lies in its software and control system. Advanced systems not only drive the machine’s motion but also enhance its capabilities:
CAM Software Integration: High-end CAM (Computer-Aided Manufacturing) software allows for the creation of complex toolpaths required for 5-axis operations.
Real-Time Simulation & Collision Detection: Prevent costly errors by simulating toolpaths before production begins.
User-Friendly Interfaces: Touchscreen interfaces, real-time feedback, and intuitive controls make operation more accessible and reduce the learning curve.
IoT and Industry 4.0 Compatibility: Many modern control systems support remote monitoring, data collection, and predictive maintenance, enabling smart manufacturing.
The work envelope defines the maximum dimensions of parts a 5-axis CNC machine can handle, and it’s a major factor in the machine’s cost:
Larger Work Envelopes: Machines with larger X, Y, and Z axes travel are capable of machining bigger components, making them ideal for industries such as aerospace, automotive, and energy.
Rotational Axes Range: A wider range of A and B (or C) axis rotation expands the machine’s versatility in creating complex geometries.
Load Capacity: Machines built to support heavy or dense materials require reinforced structures, which increases manufacturing costs.
Investing in a larger-capacity machine ensures greater application flexibility, reduces limitations on part size, and future-proofs the operation against growing production demands.
To provide a clearer picture, let’s compare the costs of different types of 5-axis CNC machines based on key factors:
| Feature | Basic Model (USD) | Mid-Range Model (USD) | High-End Model (USD) |
|---|---|---|---|
| Machine Type | $250,000 - $350,000 | $350,000 - $500,000 | $500,000 - $700,000 |
| Precision and Accuracy | ±0.001 inches | ±0.0005 inches | ±0.0002 inches |
| Automation Features | Manual tool change | Automatic tool changer | Full automation |
| Software and Control | Basic CAM software | Advanced CAM software | Premium CAM software |
| Work Envelope and Capacity | 24" x 18" x 12" | 36" x 24" x 18" | 48" x 36" x 24" |
| Total Estimated Cost | $250,000 - $350,000 | $350,000 - $500,000 | $500,000 - $700,000 |

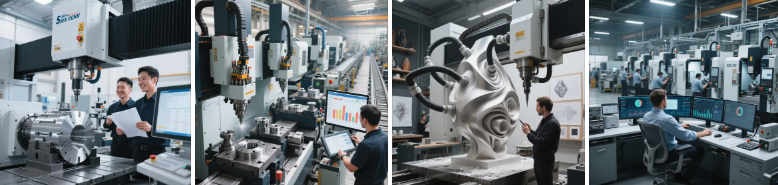

While the initial investment in a 5-axis CNC machine can be substantial, the long-term advantages often outweigh the costs. These machines are transforming manufacturing by offering unmatched capabilities that improve both productivity and part quality.
5-axis CNC machines provide superior dimensional accuracy and surface finish. Their ability to machine multiple sides of a part in a single setup eliminates repositioning errors, ensuring consistent and repeatable results. This is crucial in high-precision sectors such as:
Aerospace – where tolerances are often measured in microns
Medical device manufacturing – where exacting specifications are critical for patient safety
Tool and die making – where high accuracy directly impacts performance
By consolidating operations into a single setup, 5-axis CNC machines dramatically reduce production time. Benefits include:Fewer setups and reduced handling time;Shorter lead times;The ability to run “lights-out” operations using automation.This operational efficiency helps manufacturers meet tight deadlines and manage high-mix, low-volume production more effectively.
5-axis machining allows for the creation of complex and intricate geometries that would be impossible—or at least inefficient—with traditional 3-axis machining. These include:Undercuts and deep cavities;Compound angles;Sculpted surfaces and freeform shapes.This capability is essential for industries focused on innovation, such as motorsports, aerospace, defense, and consumer electronics.
With increased automation and fewer manual setups required, manufacturers can optimize labor allocation. A single operator can often oversee multiple machines, reducing overall labor costs and mitigating skills shortages in the machining industry.
5-axis machines use optimized tool paths and cutting strategies, resulting in:Less material waste;Better chip management;Longer tool life.This contributes to cost savings in raw materials and cutting tools, while also supporting sustainability goals.
The field of CNC machining is constantly evolving, driven by technological advancements and changing industry demands. Here are some of the latest trends shaping the future of 5-axis CNC machining:
The integration of Industry 4.0 technologies, such as IoT, AI, and data analytics, is transforming CNC machining. Smart factories are leveraging these technologies to optimize production processes, improve machine uptime, and enhance overall efficiency.
The development of advanced materials and cutting tools is enabling 5-axis CNC machines to handle more challenging applications. New materials, such as high-strength alloys and composites, require advanced tooling and machining techniques to achieve the desired results.
Hybrid machines that combine multiple manufacturing processes, such as additive and subtractive manufacturing, are becoming more prevalent. These machines offer the benefits of both processes, enabling manufacturers to produce complex parts more efficiently.
As environmental concerns grow, the CNC machining industry is adopting more sustainable practices. This includes using energy-efficient machines, optimizing tool paths to reduce energy consumption, and recycling materials.
To illustrate the capabilities and benefits of 5-axis CNC machines, let’s look at some real-world applications and case studies:
Challenge: An aerospace manufacturer needed to produce lightweight yet strong components for aircraft structures. These components required high precision and consistency, as even minor deviations could impact the safety and performance of the aircraft. The production process had to be highly efficient to meet strict regulatory standards and tight delivery schedules.
Solution: The manufacturer opted for a 5-axis CNC machine from a leading supplier. The machine featured advanced control systems, high precision, and the ability to handle complex geometries. The machine’s multi-axis capabilities allowed for efficient production of intricate parts in a single setup.
Results: The implementation of the 5-axis CNC machine led to a significant improvement in production efficiency and product quality. The manufacturer was able to reduce production time by 40%, thanks to the machine’s ability to perform complex bends quickly and accurately. The high precision of the machine ensured that each component met the stringent quality standards of the aerospace industry, reducing the risk of defects and rework. Additionally, the flexibility of the machine allowed the manufacturer to quickly adapt to design changes and small batch orders, enhancing their ability to meet diverse customer demands.
Challenge: A medical device manufacturer needed to produce highly precise components for surgical instruments. These components required high accuracy and surface finish, as even minor deviations could impact the functionality and safety of the instruments. The production process had to be efficient to meet tight delivery schedules and regulatory requirements.
Solution: The manufacturer chose a high-end 5-axis CNC machine equipped with advanced control systems and precision tooling. The machine’s ability to achieve high accuracy and surface finish made it ideal for producing medical device components. The machine’s multi-axis capabilities allowed for efficient production of complex parts in a single setup.
Results: The use of the 5-axis CNC machine resulted in a more efficient and reliable production process. The manufacturer was able to reduce production time by 35% and improve overall product quality. The high precision of the machine ensured that each component was produced with high accuracy and surface finish, meeting the stringent quality standards of the medical industry. The flexibility of the machine also allowed the manufacturer to handle small batch and multi.
A: The primary advantage of a 5-axis CNC machine is its ability to perform multi-sided machining in a single setup, reducing the need for multiple setups and secondary operations. This leads to increased efficiency, higher precision, and the capability to produce more complex geometries.
A: A basic 5-axis CNC machine typically costs between $250,000 and $350,000. This price range includes machines with manual tool changes and standard work envelopes.
A: Several factors influence the cost of a 5-axis CNC machine, including the machine type (gantry or table), precision and accuracy, automation features (such as automatic tool changers), software and control systems, and the size of the work envelope and capacity.
A: Yes, 5-axis CNC machines are designed to handle a wide range of materials, from metals like aluminum and steel to composites and plastics. The versatility of these machines makes them suitable for various industries.
A: The integration of Industry 4.0 technologies, such as IoT, AI, and data analytics, can increase the cost of a 5-axis CNC machine. However, these technologies also offer significant benefits, including improved efficiency, reduced downtime, and enhanced overall productivity.
Investing in a 5-axis CNC machine is a strategic move for manufacturers aiming to stay competitive in today’s high-precision, high-efficiency market. While the upfront cost may be significant, the advantages in accuracy, speed, and part complexity make it a worthwhile investment.By understanding the key cost factors—such as automation, control systems, and work envelope—manufacturers can choose a solution that fits both their production needs and budget.
