POR-9-20
Inserter

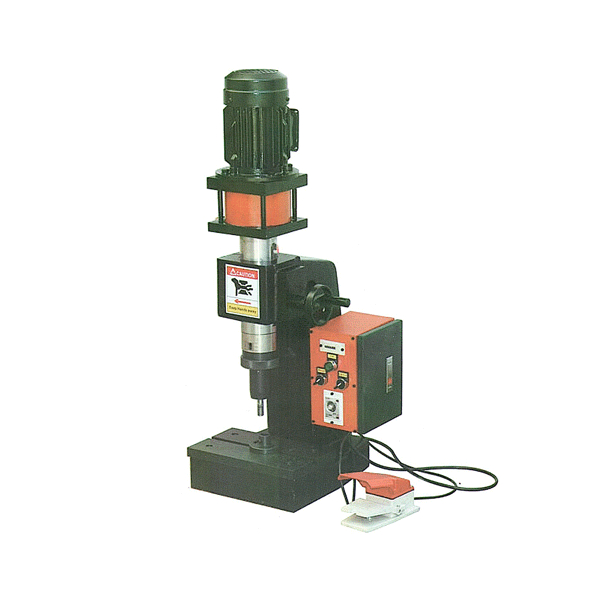

Bench Type Semi Auto Pneumatic Orbital Riveting Machines

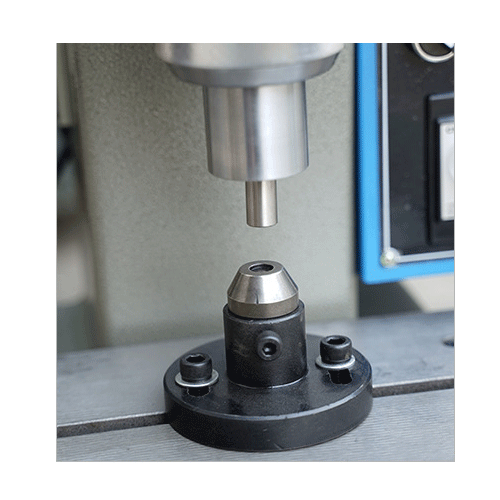

The riveting and pressing action of the rivet machine is a synthetic action, which is the synthesis of the two actions of the motor driving the spindle rotation and the cylinder pressing down.
When it comes into contact with the workpiece, it produces rolling action on the workpiece and makes the workpiece forming. Hollow and solid can be riveted.
Maine Features
Small rivet forming force, no damage to the original surface
Uniform force, smooth and regular shape
Automatic pressure keeping function

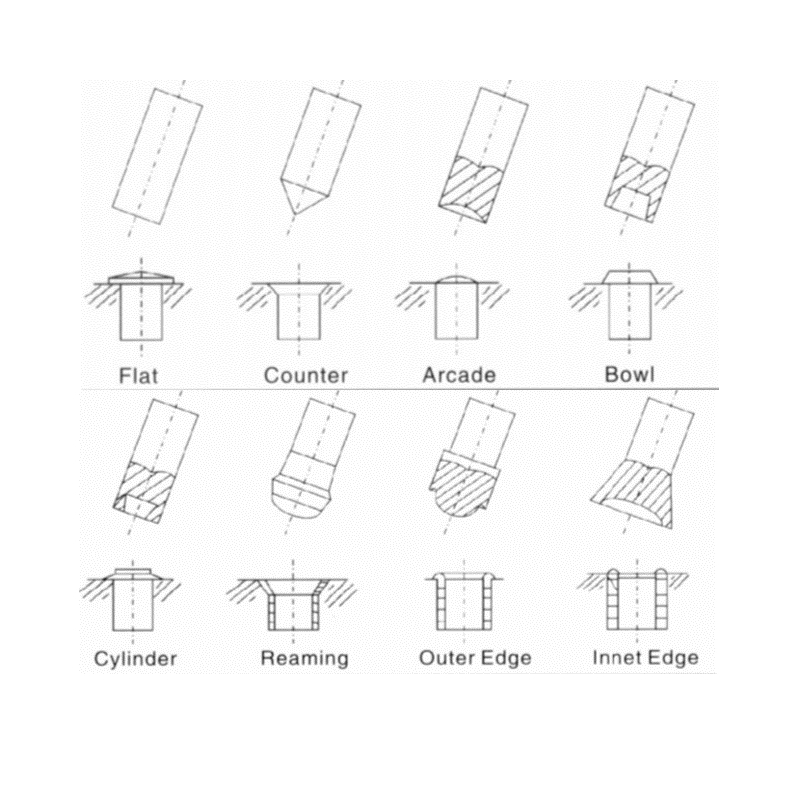

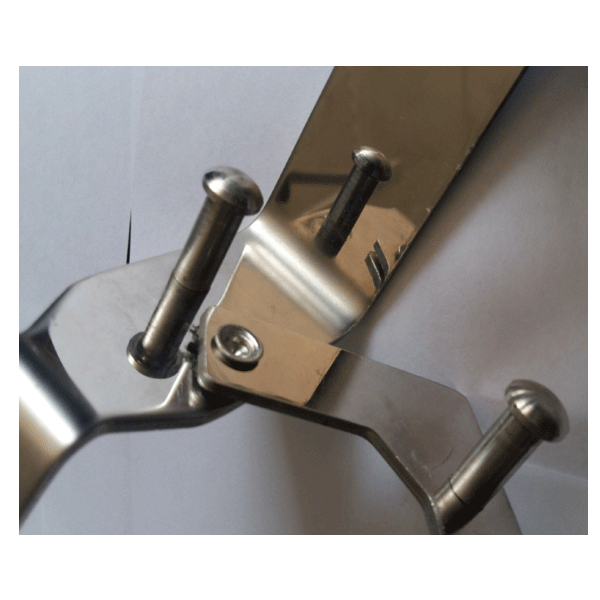

Suitable for hollow rivets, semi-tubular rivets, solid rivets
Increase much production and save labor cost
Product Parameters
| Spindle stroke | 35mm |
| Riveting ability | solid 2-8 mm; hollow 1-20 mm |
| Max Riveting pressure | 460-1100 KG/M2 |
| Mechanical Height | 1050-1170mm |
| Max Length of rivet | 150mm |
| Deep throat | 125mm |
| Workbench size | 185 x 320mm |
| Rotation speed (r.p.m) | 1400 |
| Supply power | 380V |
| Weight | 160KG |
