In the evolving world of metal fabrication, the bending machine—especially the CNC bending machine—plays a pivotal role. At the heart of precision engineering and automated metal processing, CNC bending machines stand as a critical tool for industries ranging from automotive to aerospace and electronics. This article explores what CNC bending machines are, how they work, their features and advantages, use cases, selection guidelines, maintenance tips, market trends, and how the offerings from Dongguan Insertion Machinery Co., Ltd. align with modern industry needs.
CNC (Computer Numerical Control) bending machines are highly automated tools used to bend sheet metals into specific angles and shapes. By combining programmable controls with mechanical precision, these machines deliver high repeatability, minimal human error, and increased productivity.
Bending machines are crucial for any metal fabrication line. They ensure that sheet metal is shaped accurately and consistently to match production requirements. A high-quality bending process is vital for structural integrity, product aesthetics, and fitting components correctly. Errors in the bending phase can lead to downstream issues in assembly or product performance.
Dongguan Insertion Machinery Co., Ltd. specializes in high-performance sheet metal processing equipment, with a particular emphasis on insertion machines and bending machines. Their line of CNC bending machines stands out for incorporating cutting-edge automation, user-friendly interfaces, durable mechanical construction, and customizable software options tailored for industrial-grade operations.
| Feature | Description |
|---|---|
| Control System | High-precision CNC controller with intuitive touch screen interface. Supports multi-program memory and remote troubleshooting. |
| Axis Configuration | Multi-axis control for complex bends, with configurations such as 3+1, 4+1, 6+1 for enhanced precision and flexibility. |
| Material Thickness | Handles various gauges from 0.5mm to over 6mm, suitable for a wide range of sheet metal types. |
| Bending Force | Machines with force ratings from 40T to over 100T, catering to lightweight brackets and heavy-duty structural components alike. |
| Working Length | Models range from compact 600mm beds to large-scale 3200mm configurations. |
| Back Gauge | Servo-driven CNC back gauge ensures high-speed, repeatable part positioning for maximum throughput. |
| Safety Features | Integrated safety light curtains, overload protection, auto-diagnosis, and emergency stop systems. |
| Tooling | Universal tool compatibility with hydraulic clamping, fast tool changes, and various punch/die profiles available. |
CNC bending machines follow a systematic and digitally controlled process to deliver consistent and high-quality bends. These machines are designed to provide precise and repeatable bending operations, making them indispensable in modern manufacturing. Here’s a detailed look at how CNC bending machines work:
Modern CNC bending machines integrate seamlessly with CAD/CAM software. Engineers design components in CAD, and the geometry is translated into machine-readable code. This eliminates manual programming and reduces errors. The integration ensures that the design intent is accurately transferred to the machine, allowing for complex geometries and intricate bends to be achieved with high precision.
Based on the material type, thickness, and bending angle, appropriate punches and dies are installed. CNC systems often include tooling libraries that automatically suggest optimal configurations. These libraries are designed to optimize tool selection, ensuring that the best tools are used for each specific job. This not only improves the quality of the bend but also enhances the efficiency of the process.
Sheet metal is precisely positioned using a back gauge system. The CNC control automatically adjusts the back gauge based on the program, ensuring exact placement. This system is crucial for maintaining the accuracy of the bending process, as it ensures that the material is in the correct position before the bending operation begins. Advanced CNC machines can adjust the back gauge in real-time, accommodating changes in the bending program without manual intervention.
The press brake exerts controlled force to bend the sheet metal at desired angles. Sensors and encoders track ram positions and adjust in real-time to compensate for springback and material inconsistencies. This real-time adjustment is critical for maintaining the precision of the bend, especially when working with materials that have varying properties. The use of sensors and encoders ensures that the machine can adapt to any deviations, ensuring consistent results.
High-end machines utilize sensors and feedback loops to detect deviations. These systems automatically recalibrate, ensuring the final product adheres to tight tolerances. This advanced feedback mechanism is essential for maintaining high-quality standards. By continuously monitoring the bending process and making real-time adjustments, these machines can produce parts with exceptional precision and consistency.

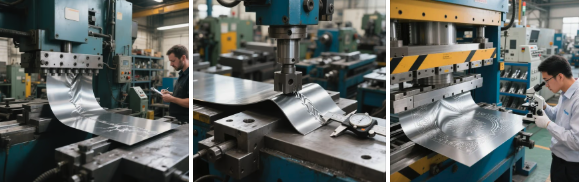

In the realm of sheet metal fabrication, various bending techniques are employed to achieve different results based on the specific requirements of the application. Understanding these techniques is crucial for selecting the right method to ensure precision, efficiency, and cost-effectiveness. Here’s a detailed overview of the most common bending techniques:
| Bending Technique | Description | Application |
|---|---|---|
| Air Bending | The punch bends the metal without full contact with the die bottom. More versatile and requires less force. | Common across most applications. |
| Bottoming | The metal is pressed into full contact with the die. Produces consistent angles but requires specific tooling. | High-precision work. |
| Coining | Uses high force to imprint the material between punch and die, altering its internal structure. | Ideal for tight tolerances and high-volume production. |
CNC bending machines offer unparalleled precision and repeatability, ensuring that each bend is executed with micrometer-level accuracy. This high degree of precision minimizes the need for rework and reduces material waste, which is especially beneficial in mass production settings. By maintaining consistent bend angles and dimensions, CNC machines help manufacturers achieve high-quality products that meet stringent industry standards.
One of the most significant advantages of CNC bending machines is their ability to enhance labor and time efficiency. Due to their automated nature, operators can manage multiple machines simultaneously, significantly increasing productivity. Rapid setup changes and program storage capabilities further reduce downtime, allowing for seamless transitions between different bending tasks. This efficiency is crucial for meeting tight deadlines and maintaining high throughput in modern manufacturing environments.
Investing in a CNC bending machine can lead to substantial cost savings over time. Reduced scrap rates, faster processing times, and less reliance on skilled labor collectively drive down manufacturing costs. By minimizing the need for manual intervention and optimizing the bending process, manufacturers can achieve higher efficiency and lower operational expenses, making CNC bending machines a cost-effective solution for both small and large production runs.
CNC bending machines are highly adaptable, making them suitable for a wide range of production volumes. Whether fabricating custom prototypes or large production batches, these machines can easily scale to meet different volume requirements. This flexibility ensures that manufacturers can efficiently handle diverse orders without compromising on quality or efficiency, making CNC bending machines ideal for both startups and established enterprises.
Advanced CNC bending machines feature state-of-the-art digital controls and monitoring systems. Touchscreen Human-Machine Interfaces (HMIs) provide intuitive control over the bending process, while real-time performance dashboards offer valuable insights into machine status and productivity. Remote monitoring capabilities allow operators to manage and troubleshoot machines from a distance, further enhancing operational efficiency and convenience.
In an era where sustainability is increasingly important, CNC bending machines offer environmentally friendly options. Electric CNC press brakes, for example, provide significant energy savings compared to traditional hydraulic machines. Additionally, the elimination of hydraulic fluids reduces the risk of environmental contamination, contributing to greener manufacturing practices. By choosing eco-friendly CNC bending machines, manufacturers can reduce their carbon footprint and align with global sustainability goals.
Referencing Dongguan Insertion Machinery‘s product page ,here are their highlighted CNC bending machine models:
| Model | Max Bending Length | Max Bending Force | Axis Configuration | CNC Controller | Application |
|---|---|---|---|---|---|
| YS-600CNC | 600mm | 40T | 3+1 Axis | Touchscreen CNC | Small electronic enclosures |
| YS-1000CNC | 1000mm | 63T | 4+1 Axis | High-res controller | HVAC ducts, cabinets |
| YS-1600CNC | 1600mm | 100T | 6+1 Axis | Multi-program system | Automotive panels, industrial boxes |

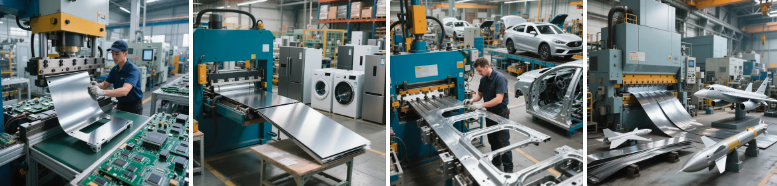

CNC bending machines are indispensable tools across a wide variety of industries due to their unparalleled accuracy, reliability, and compatibility with diverse materials. These machines enable manufacturers to produce high-quality, precision-bent components efficiently and consistently. Here’s a detailed look at how CNC bending machines are utilized in different sectors:
In the electronics industry, precision is paramount. CNC bending machines are used to fabricate a range of components, including:
Battery Housings: These require precise dimensions and tight tolerances to ensure a secure fit and optimal performance.
PCB Brackets: Used to hold and protect printed circuit boards, these components often have intricate designs and require high precision.
Signal Enclosures: These housings protect sensitive electronic components from environmental factors and physical damage.
The high demand for small, intricate components with precise tolerances makes CNC bending machines essential in electronics manufacturing. Their ability to achieve high precision and repeatability ensures that each component meets the stringent quality standards required in this industry.
The home appliance industry relies on CNC bending machines to produce components that are both functional and aesthetically pleasing. Key applications include:
Exterior Panels: These panels need to be durable and visually appealing, often requiring custom bends and finishes.
Chassis Frames: The structural integrity of appliances depends on the precision and consistency of these frames.
Support Components: Various internal components, such as brackets and supports, require precise bending to ensure stability and functionality.
Consistency and aesthetics are crucial in this industry, as appliances must meet both functional and design requirements. CNC bending machines ensure that each component is bent to the exact specifications, maintaining the quality and appearance of the final product.
The automotive industry demands high precision and reliability, especially when it comes to safety-critical components. CNC bending machines are used to produce:
Chassis Components: These must be manufactured to exact specifications to ensure the structural integrity and safety of the vehicle.
Reinforcement Beams: Used to enhance the strength and durability of the vehicle, these components require high-precision bending.
Crash Structures: These components are designed to absorb impact in the event of a collision, necessitating precise and consistent bends.
Dashboards: The dashboard assembly requires precise bending to ensure a perfect fit and functionality.
CNC bending machines in the automotive sector must meet stringent safety standards and handle high-strength materials, ensuring that each component is manufactured to the highest quality.
The aerospace and defense industries have some of the most demanding requirements for precision and reliability. CNC bending machines are used to produce:
Structural Panels: These panels form the critical structural components of aircraft and spacecraft, requiring high precision and consistency.
Brackets and Frames: Used to support various systems and components, these parts must be manufactured to exact specifications to ensure safety and functionality.
Aluminum and Titanium Alloys: These materials are commonly used in aerospace applications due to their high strength-to-weight ratios. CNC bending machines are capable of handling these materials with high precision.
High-precision bending is essential in the aerospace and defense industries, where even minor deviations can have significant consequences. CNC bending machines provide the necessary accuracy and reliability to meet these stringent requirements.
The HVAC and construction industries require components that are both durable and custom-fit. CNC bending machines are used to produce:
Ductwork: Custom-bent ducts ensure efficient airflow and proper ventilation in building systems.
Mounting Brackets: These components must be precisely bent to ensure secure and stable installation.
Ventilation Panels: Custom bends are often required to fit specific installation spaces and ensure optimal performance.
These industries demand custom bending with repeatability, ensuring that each component fits perfectly and functions efficiently. CNC bending machines provide the flexibility and precision needed to meet these requirements.
The telecommunications industry relies on precision-manufactured components to ensure reliable and efficient operation. CNC bending machines are used to produce:
Server Racks: These racks must be precisely manufactured to accommodate various server equipment and ensure proper cooling and accessibility.
Switchboard Cabinets: These cabinets house critical electrical components and require precise bends to ensure safety and functionality.
Data Enclosures: These enclosures protect sensitive data equipment and require high precision and reliability.
The telecommunications industry demands fast prototyping and high-volume fabrication, making CNC bending machines essential for meeting production schedules and quality standards.

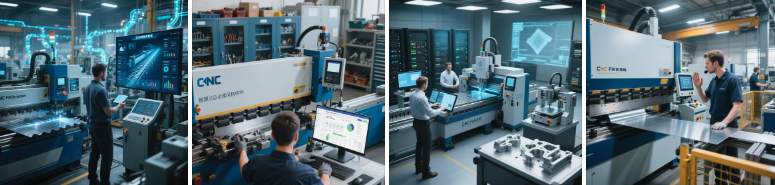

The future of CNC bending machines is closely tied to the evolution of Industry 4.0. Smart factories are increasingly leveraging interconnected machines, Enterprise Resource Planning (ERP) software, and cloud-based platforms to create a seamless manufacturing ecosystem. This integration allows for real-time data analytics, enabling manufacturers to monitor machine performance, optimize production schedules, and streamline workflows. Automatic job scheduling and predictive analytics ensure that production lines run efficiently, reducing downtime and improving overall productivity.
Advancements in sensor technology and artificial intelligence (AI) are transforming the maintenance landscape for CNC bending machines. Sensors embedded in the machines collect performance data, which is then analyzed by AI algorithms to predict component wear and suggest optimal maintenance schedules. This proactive approach minimizes unexpected downtime, reduces maintenance costs, and extends the lifespan of critical components. Predictive maintenance ensures that machines operate at peak performance, enhancing productivity and reliability.
Digital twin technology is emerging as a game-changer in the manufacturing sector. A digital twin is a virtual replica of a physical machine that can be used to simulate performance under various conditions. For CNC bending machines, this technology allows manufacturers to optimize machine settings, predict performance, and reduce setup time. By using digital twins, companies can fine-tune their machines virtually before actual production, ensuring that each bend is executed with the highest precision and efficiency.
The future of CNC bending machines also includes a stronger focus on human-machine collaboration. Collaborative robots (cobots) are increasingly being integrated into manufacturing processes to perform tasks such as loading and unloading materials. These cobots work alongside human operators, enhancing throughput and efficiency without the need for full automation cells. This collaborative approach leverages the strengths of both humans and machines, creating a more flexible and productive manufacturing environment.
As environmental sustainability becomes a priority for manufacturers, the shift towards eco-friendly CNC bending machines is gaining momentum. Electro-mechanical press brakes are increasingly replacing traditional hydraulic machines. These modern press brakes are quieter, cleaner, and more energy-efficient, aligning with global sustainability goals. By reducing energy consumption and eliminating the need for hydraulic fluids, manufacturers can significantly lower their environmental impact while also benefiting from reduced operational costs.
Selecting the best CNC bending machine requires careful evaluation of both current and future production requirements:
Thicker and harder materials require higher tonnage and robust tooling.
Consider material rebound and choose a machine that supports compensation features.
Intricate parts need more axis control (e.g., 6+1 axis for 3D bends).
Software simulation features are beneficial for complex designs.
For batch production, fast cycle times and automatic tool changers improve efficiency.
Custom shops may benefit from flexible programming and easy tooling swaps.
Choose a machine with intuitive HMI, remote diagnostics, and compatibility with CAD/CAM platforms.
Look for manufacturers offering regular software updates.
Check floor space, machine footprint, and access for material handling.
Prioritize safety features such as light curtains and overload protection.
Opt for brands like Dongguan Insertion Machinery that provide installation, training, maintenance, and fast parts delivery.A thoughtful investment in the right CNC bending machine improves overall equipment effectiveness (OEE) and delivers a solid ROI in competitive manufacturing environments.
Proper maintenance is crucial for ensuring the optimal lifespan and performance of CNC bending machines. Regular maintenance not only prolongs the life of the machine but also ensures consistent performance and reduces the risk of unexpected downtime. Here are some essential maintenance tips to keep your CNC bending machine running smoothly:
Clean Work Area: Ensure that the work area around the machine is free from debris and metal shavings. A clean environment reduces the risk of contamination and improves overall machine performance.
Inspect Tooling: Check the condition of the punches and dies. Look for signs of wear, damage, or misalignment. Replace any worn or damaged tools promptly to avoid affecting the quality of the bends.
Check Sensors: Verify that all sensors and encoders are functioning correctly. Misaligned or faulty sensors can lead to inaccurate bends and potential machine malfunctions.
Lubricate Moving Parts: Apply lubricant to all moving components, such as gears, slides, and rams. Proper lubrication reduces friction, minimizes wear, and ensures smooth operation.
Check Alignment: Ensure that the machine’s tooling and components are properly aligned. Misalignment can lead to inconsistent bends and increased wear on the machine.
Software Diagnostics: Run diagnostic software to check for any system errors or performance issues. Update the software to the latest version to benefit from new features and bug fixes.
Inspect Hydraulic Lines: Check for leaks, wear, or damage in the hydraulic system. Ensure that all connections are tight and that the hydraulic fluid is clean and at the correct level.
Full Mechanical and Electronic Audit: Conduct a comprehensive inspection of all mechanical and electronic components. This includes checking motors, drives, control systems, and safety features. Replace any worn or damaged parts and calibrate the machine to ensure it meets the required specifications.
CNC: Computer-controlled, programmable, high precision.
NC: Basic control, limited automation, lower cost.
Yes, depending on tonnage and tooling, they can handle most metals used in industrial production.
Minimal training is needed due to the intuitive CNC interface, though knowledge of material behavior and tooling setup is beneficial.
Yes. They provide installation, training, remote diagnostics, and ongoing technical support globally.
CNC bending machines represent the cutting edge of sheet metal processing. They combine automation, precision, and flexibility, enabling manufacturers to meet demanding quality and lead-time requirements.Dongguan Insertion Machinery Co., Ltd. offers state-of-the-art solutions tailored to diverse industries. Their CNC bending machines are not just equipment—they are strategic assets for companies embracing the future of intelligent manufacturing.
For enhanced productivity, quality assurance, and cost efficiency, partnering with Dongguan Insertion Machineryensures you stay ahead in the competitive landscape of modern fabrication.
