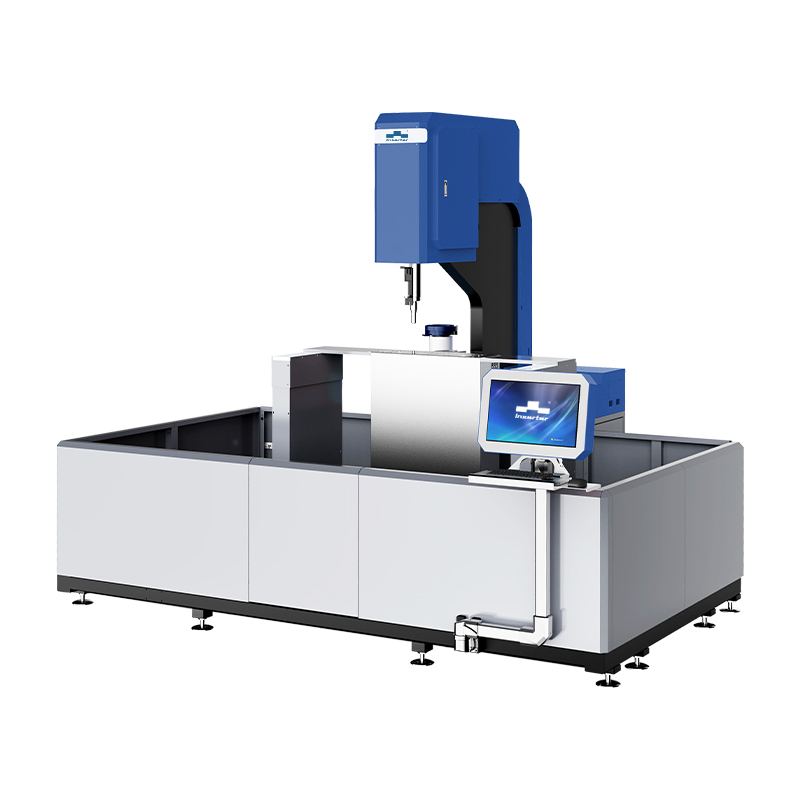

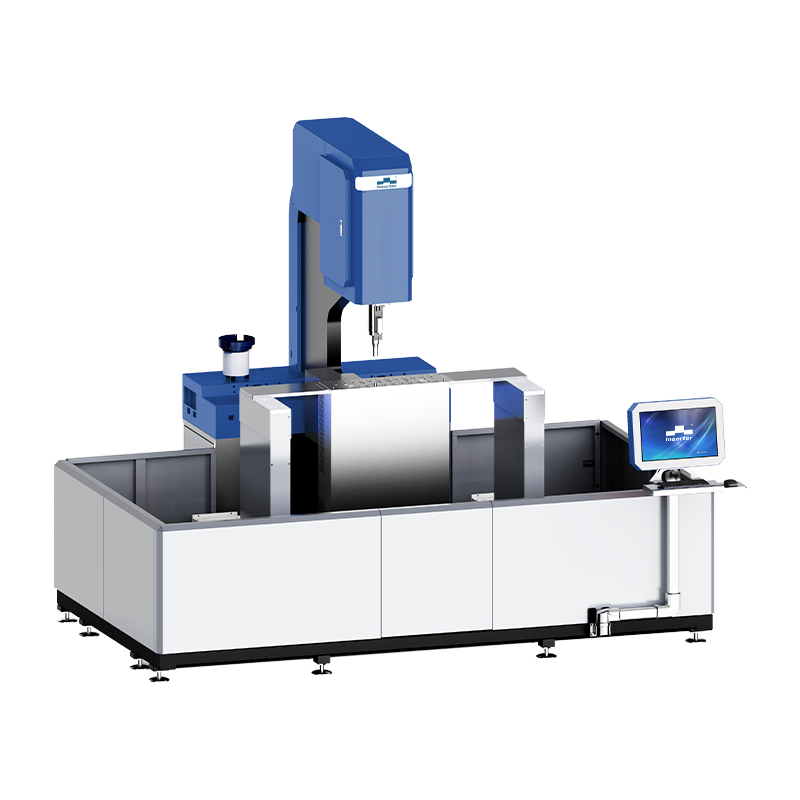

Low-Energy Smart Fastener Insertion Center

Product Overview

It automates insertion in 3 seconds per part, handling mandrel heights from 100 mm to 200 mm. Its modular cartridge feeds eight to twelve fastener types (⌀7–30 mm), so you can switch rivet sizes on the fly without downtime.

Key Features

• Fastener insertion speed: 3.0 sec/pc

• The maximum bending avoidance height is 100mm, and it can be customized up to 200mm

• Capable of holding 8-12 different rivets simultaneously, with compatibility for long rivets ranging from 7 to 30 mm

• The XY axis guide rails of the working platform have high precision, high speed and long life

• Feeding tool modular structure, faster replacement

Advantages

• Fully intelligent automatic riveting, unmanned operation,significant cost savings

• Automatic loading and unloading robots, a smart flexible production line is realized to improve quality and efficiency

• 8 combinations of rivets (nuts, studs, screws) of any length andany type are available, with a wide range of applications

• All human-machine interfaces such as riveting force, holding time, height travel, riveting count, anti-leakage pressure,riveting sequence, etc. can be operated digitally

• Intelligent programming system, can be converted from CAD to automatic programming,convenient and fast

• Intelligent riveting machine, stable pressure, automatically adjusts the pressure according to the rivet and plate

• The two parts of the intelligent lifting automatic feeding platform are connected and can be used separately when needed

• The machine only applies full load at the moment of crimping and consumes only 15% of energy during standby, enabling significant energy saving




Technical Parameters of Fastener Insertion Center
