800MSR
Inserter
800MSR

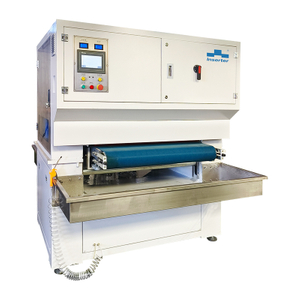

800SR Rotary Brush Deburring/Edge Rounding/Surface Finishing
Mild Steel
Main Features
Stable and reliable Inserter patented abrasive belt control technology
Permanent magnet conveying platform can process small workpieces
Four-column synchronous lifting, rolling brush position independent lifting, lifting servo control, accuracy 0.01 mm
Abrasive automatic compensation
Abrasive life display
Optional wet dust collector to achieve environmental protection production
Applications
Edge rough burrs removal
Heavy slag removal
Edge radiusing
Metal surface hairline
Oxide removal
Leave oxide when deburring
Technical Specifications
| Processing Width | 450mm,800mm,1000mm,1300mm,1600mm |
| Roller Brush Size | 300*300mm/300*400mm |
| Processing Thickness | 0.5-80mm |
| Chamfer Range | r0.1-1.0mm |
| Conveyor Speed | 0.5-6m/min |
| Working Table Size | 900-980mm |
| Roller Brush Speed | 9-21r/s |
| Min Processing Size | 50*50mm(vacuum adsorption) |
Optional Feeding Mode
Strong permanent magnet adsorption feeding(suitable for carbon steel workpieces)
Rubber roller clip feeding(suitable for ordinary workpieces)
Optional Structure
For large burr pretreatment, such as laser, plasma blanking workpiece, there is relatively large slag or slag hanging, one or more sets of powerful wide abrasive belt large burr pretreatment structure can be selected to match the processing behind the roller brush.
For surface drawing workpieces with chamfered surface requirements in special industries, the wide abrasive belt drawing station can also be arranged behind the roller brush.
Suitable Blanking Process
Laser cutting,plasma,flame,NCT blanking,die stamping,shear cold working
Suitable Plate
Suitable for flat plate parts carbon steel plate, stainless steel plate, aluminum plate, conner plate, titanium alloy all kinds of non-ferrous metals, rubber and plastic materials.
