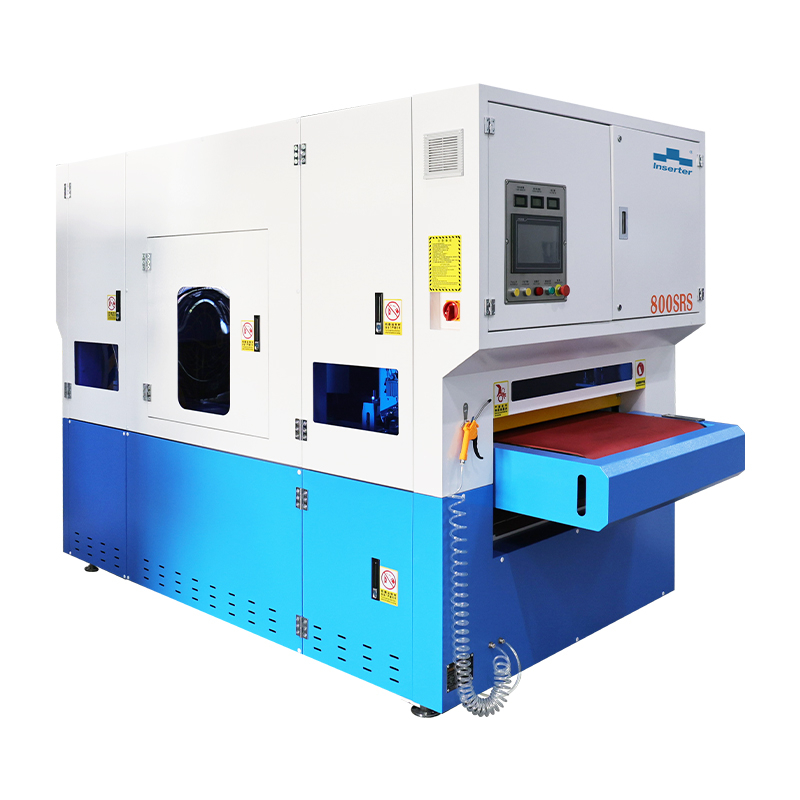

Sanding Belt And Roller Brush Type Automatic Deburring Machine

Function: Edge Rounding, Surface Finishing, Rust removal polishing
Application: Sheet Metal, Metal Parts
Availability:
Quantity:
  • XDP-800RPR

Series Automatic Deburring Machine

Due to the rise of the laser industry, burrs occur when laser cutting sheet metal. Today, we come to provide Automatic Deburring Machine to you.


This equipment is universal roller brush and dry sanding belt combination model. It is mainly used to deal with deburring, chamfering and wire drawing functions. Deburring of workpiece edges and holes. Adjust different parameters according to different processing requirements and select appropriate abrasives.


Main Features:

  • Wide sanding belt: 2 sets of wide sanding belt rotate at high speed.

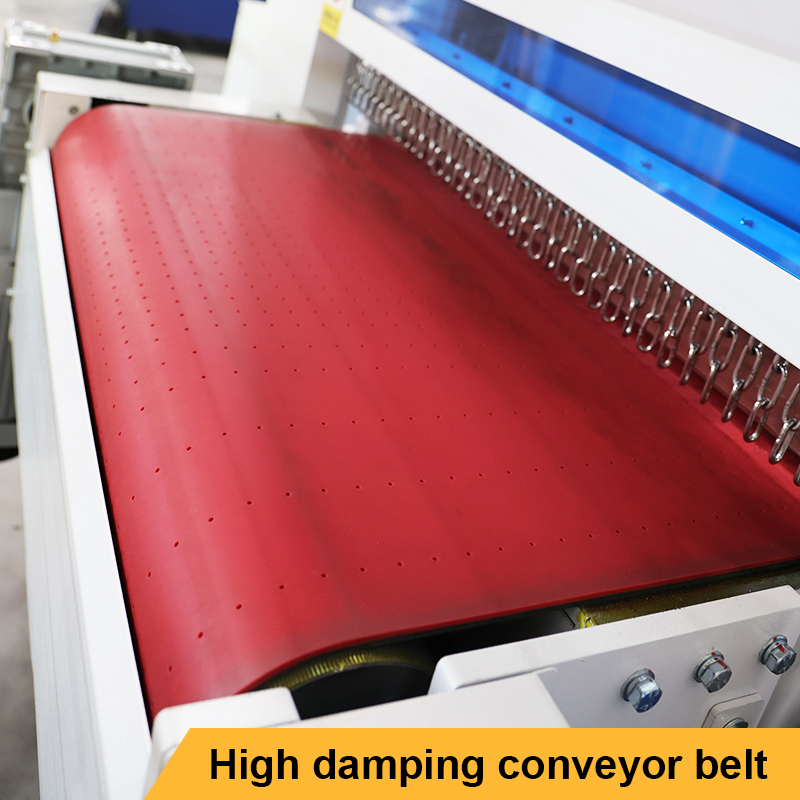

  • Vacuum adsorption table, variable frequency speed regulation

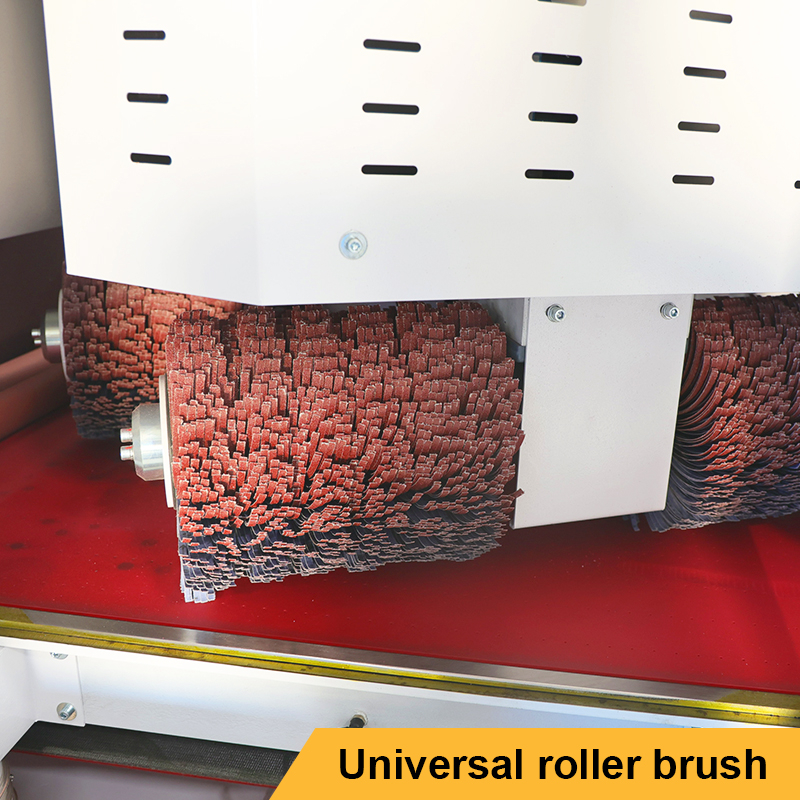

  • Roller Brush: 2 rows (2 groups in each row) of universal roller brushes rotate at high speed to beat the surface of the workpiece, high precision

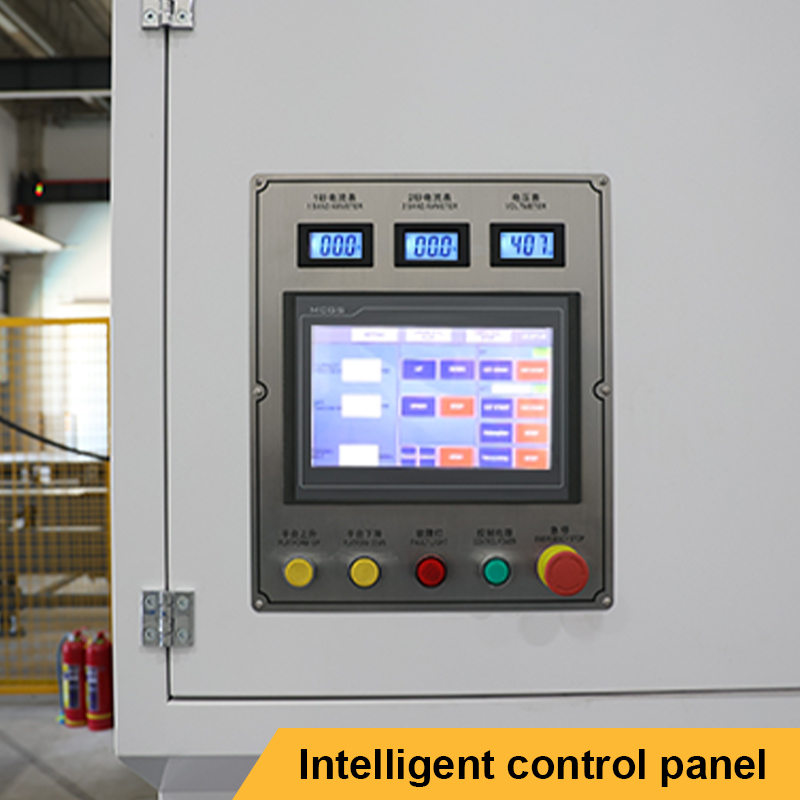

  • Intelligent control panel: High-definition screen, touch screen quick settings replace tradi- tional button control, easily realize automation

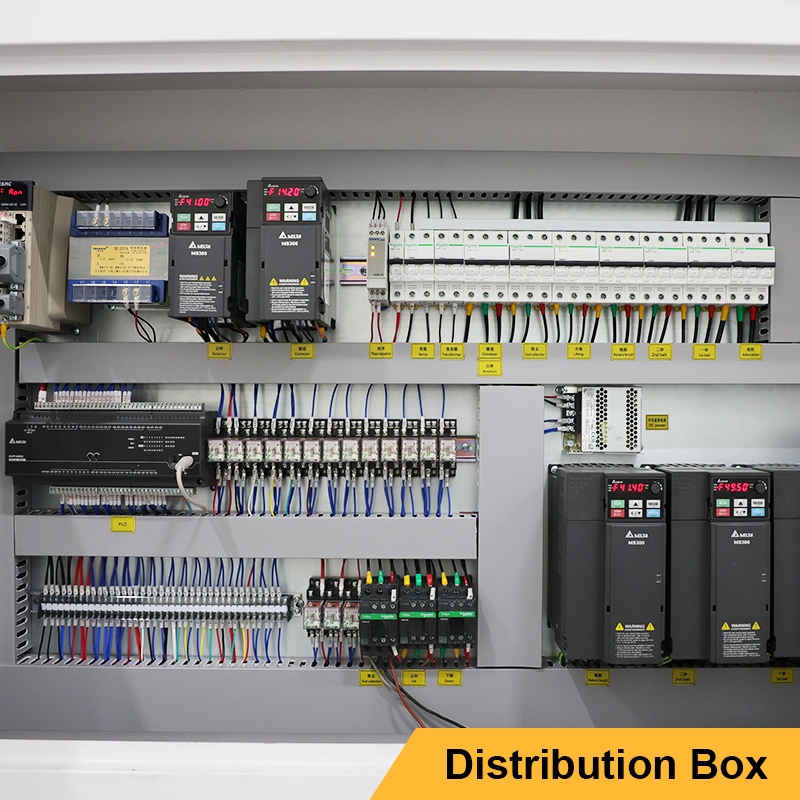

  • Distribution Box: All electrical components adopt the highest specification standards and have stable performance.

  • Equipped with Kyushu Pratt & Whitney fan, low noise


Technical Parameters

Table Height

900-980mm

Processing thickness0.5-80mm
Minimum processing size50*50mm
Maximum processing width800mm
Sanding Belt size1900*820mm
Disc roll size specificationsφ300*300mm
Chamfer rangeR(0.1-0.5)
Revolution speed0-12r/min
Vacuum Air Volume5000m³/h
Total Power39KW
